Description
Introducing the TECO TWW28HVAG 2.8kW air conditioner, a versatile and efficient solution for all your cooling and heating needs. With cutting-edge technology and impressive performance, this unit is designed for modern households seeking comfort and energy savings.
Key Features of the TECO TWW28HVAG 2.8kW Air Conditioner
-
Energy Efficiency: With a high EER of 3.29, this air conditioner significantly reduces electricity costs, making it an economical choice for your home.
-
Powerful Cooling and Heating: Enjoy reliable comfort year-round with 2800W cooling and 2430W heating capacities, ensuring your space remains cozy in any season.
-
Quiet Operation: Designed for tranquility, the TECO TWW28HVAG operates at just 60 dB(A) indoors and 66 dB(A) outdoors, perfect for bedrooms and quiet living areas.
-
Optimal Airflow Performance: Achieve effective cooling with a high airflow volume of 420 m³/h, distributing air evenly throughout your space.
-
Effective Dehumidification: Maintain comfortable humidity levels with a dehumidifying capacity of 1.6 L/h, enhancing indoor air quality and comfort.
-

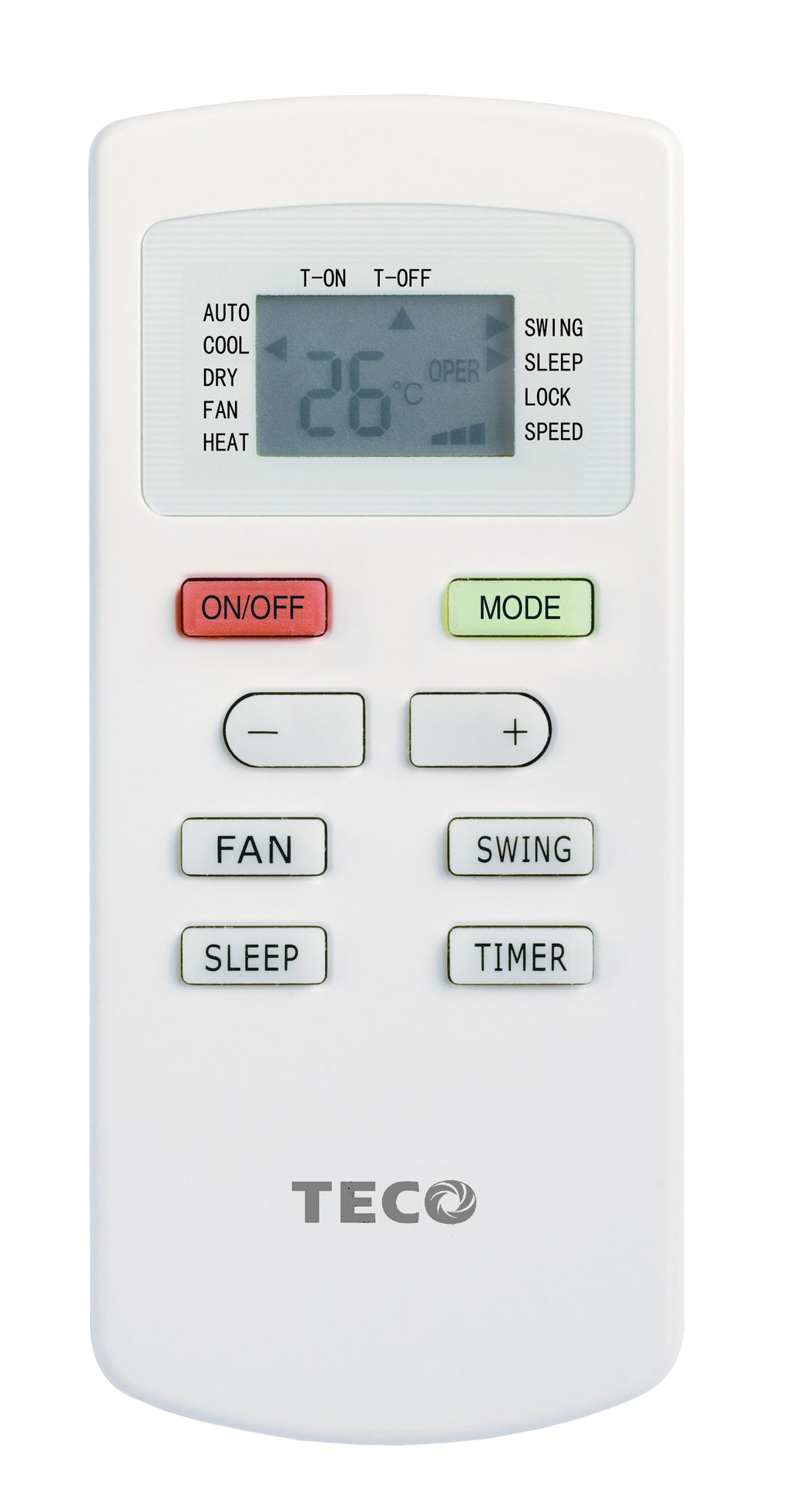

User-Friendly Features: The unit comes with a convenient remote control and multiple functions for easy operation, putting comfort at your fingertips.
-
Compact Design: With space-efficient dimensions of 560 x 375 x 708 mm, the TECO TWW28HVAG fits seamlessly into various installations.
-
Durable Moisture Protection: Featuring an IPX4 moisture protection rating, this air conditioner is built to withstand outdoor conditions for lasting performance.
-
Versatile Application Area: Ideal for rooms ranging from 16 to 24 m², providing flexibility for different spaces and needs.
-
Environmentally Friendly Refrigerant: Utilizing R32 refrigerant, this unit helps reduce environmental impact while ensuring efficient operation.
| TECO INVERTER WINDOW WALL AIR CONDITIONER | — | 2.8kW | |
| TECO Model | — | TWW28HVAG | |
| TECO EAN Code | — | 9346998006732 | |
|
Power Supply
|
Rated Voltage | V | 220-240 |
| Rated Frequency | Hz | 50 | |
| Phases | — | 1 | |
| Cooling Capacity | W | 2800 | |
| Cooling Capacity Range | W | 2800(Rated)/1450(Mid) | |
| Cooling Power Input | W | 850 | |
| Cooling Power Input Range | W | 850(Rated)/420(Mid) | |
| Cooling Power Current | A | 4.5 | |
| Cooling Power Current Range | A | 4.5(Rated)/2.08(Mid) | |
| Heating Capacity | W | 2430 | |
| Heating Capacity Range | W | 2400(Rated)/1220(Mid) | |
| Heating Power Input | W | 770 | |
| Heating Power Input Range | W | 780(Rated)/330(Mid) | |
| Heating Power Current | A | 4.5 | |
| Heating Power Current Range | A | 4.5(Rated)/1.7(Mid) | |
| EER | W/W | 3.2941 | |
| AEER | W/W | 3.2426 | |
| Cooling Star Rating (Hot / Mixed / Cold) | 2.5/2/2 | ||
| Cooling Energy Consumption (Hot / Mixed / Cold) | kWh/year | 892/304/202 | |
| COP | W | 3.1558 | |
| ACOP | W | 3.1015 | |
| Heating Star Rating (Hot / Mixed / Cold) | 1.5/0.5/0.5 | ||
| Heating Energy Consumption (Hot / Mixed / Cold) | kWh/year | 71/559/1533 | |
| Noise (Energy Label – Indoor / Outdoor) | dB(A) | 60/66 | |
| Rated Input (Max) | W | 1250 | |
| Rated Current (Max) | A | 7 | |
| Inactive Energy (Avg) | W | 4 | |
| Air Flow Volume(H/M/L) | m3/h | 420/380/340 | |
| Air Flow Volume(H/M/L) | L/s | 117/106/94 | |
| Air Flow Volume(H/M/L) | CFM | 247/224/200 | |
| Dehumidifying Volume | L/h | 1.6 | |
| Dehumidifying Volume | Pint/h | 3.38 | |
| Application Area | m2 | 16-24 | |
| Permissible Excessive Operating Pressure for the Discharge Side | MPa | 4.3 | |
| Permissible Excessive Operating Pressure for the Suction Side | MPa | 2.5 | |
| Maximum Allowable Pressure | MPa | 4.3 | |
| Climate Type | — | T1 | |
| Isolation | — | I | |
| Moisture Protection | — | IPX4<outdoor> | |
| Evaporater Coil Hydrophilic Coating | — | Blue | |
| Condensor Coil Hydrophilic Coating | — | Gold | |
| Dimension (W×H×D) | mm | 560x375x708 | |
| Recommended Cut-out Size (W×H) | mm | 565×380 | |
| Dimension of Carton Box (L×W×H) | mm | 803x620x410 | |
| Dimension of Package (L×W×H) | mm | 806x623x425 | |
| Net Weight | kg | 38 | |
| Gross Weight | kg | 41 | |
| Stacking layers | 6 | ||
| Refrigerant | — | R32 | |
| Refrigerant Charge | kg | 0.55 | |
|
Indoor Side
|
Fan Type | Centrifugal | |
| Set Temperature Range | ℃ | 16～30 | |
| Sound Pressure Level (H/M/L) | dB (A) | 49/47/45 | |
| Sound Power Level (H/M/L) | dB (A) | 59/57/55 | |
|
Outdoor Side
|
|||
| Cooling Operation Ambient Temperature Range | ℃ | 18～43 | |
| Heating Operation Ambient Temperature Range | ℃ | -7～24 | |
| Sound Pressure Level (H/M/L) | dB (A) | 58/56/54 | |
| Sound Power Level (H/M/L) | dB (A) | 68/66/64 | |
| Container Loading Quantity (20GP/40GP/40HQ) | 125/260/312 | ||
| Electronic Control with Remote Controller | YES | ||
|
General Function
|
Auto | YES | |
| Cooling | YES | ||
| Heating | YES | ||
| Dehumidify | YES | ||
| Sleep | YES | ||
| Timer | YES | ||
| Auto Swing (Horizontal Auto Swing) | YES | ||
| Air Flow | YES | ||
| Memory | YES | ||
| Auto Fan | YES | ||
| Filter Dirty Alarm | YES | ||
| Soft Start | YES | ||
| Low Voltage Startup | YES | ||
| Intelligent Preheating | YES | ||
| Auto Restart | YES | ||
| Self Diagnosis | YES | ||
| Silver Ion Sterilizing Filter | YES | ||
